SY46620
Available now

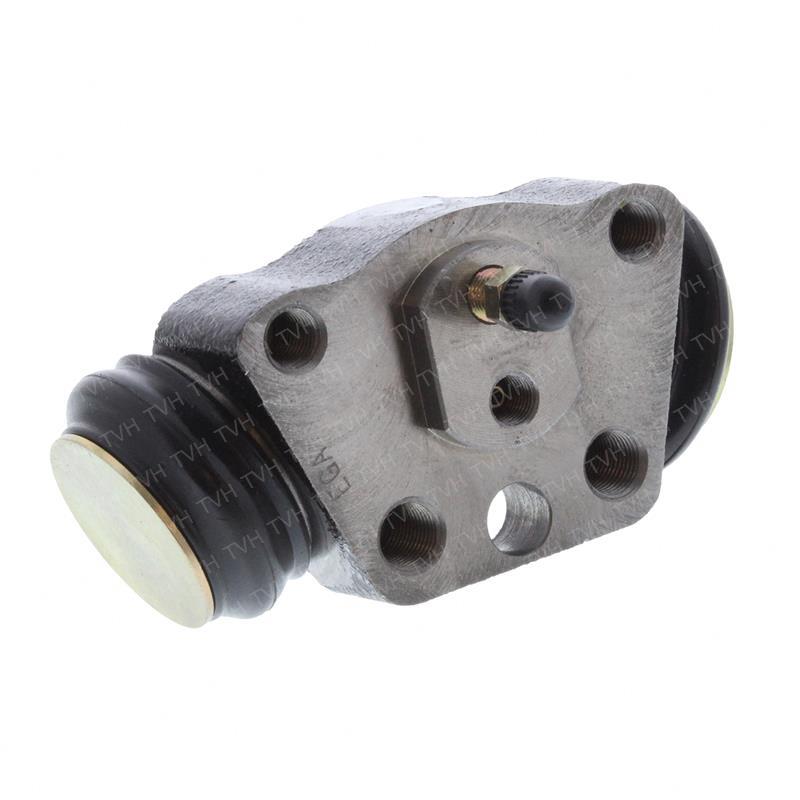

Brake Wheel Cylinder - 1 1/4 in Bore
Part # SY46620Wheel Cylinders3.06 lbTotalSource
Price
$49.74List $53.46
Not sure it fits?
Send us your truck's make, model and serial number and we'll confirm before you order.
Details & specifications
Brake Wheel Cylinder for forklifts and material handling equipment. Aftermarket replacement part from TotalSource, part number SY46620.
Specifications
| Bore diameter | 1 1/4 in |
| Type of oil | Brake fluid |
| Wheel cylinder type | Neutral |
| Length of the housing without caps | 4.17 in |
| Neck diameter | 1.42 in |
| Neck height | 0.35 in |
| Number of fixation holes | 4 |
| Smallest center distance | 1.73 in |
| Largest center distance | 2.83 in |
| Port Thread Pitch | 24 tpi |
| Port Thread Size | 3/8 UNF |
| Smallest mounting thread size | 7/16 UNF |
| Largest mounting thread pitch | 20.00 mm |
| Largest mounting thread size | 1/2 UNF |
| Smallest mounting thread pitch | 20 tpi |
| Inlet with taper | Yes |
| Exit with taper | Yes |
| Weight (lbs) | 3.06 |
Not sure it fits? Send us your truck make, model and serial number and we will confirm before you order.
