Texas Equipment Emporium · Aftermarket replacement

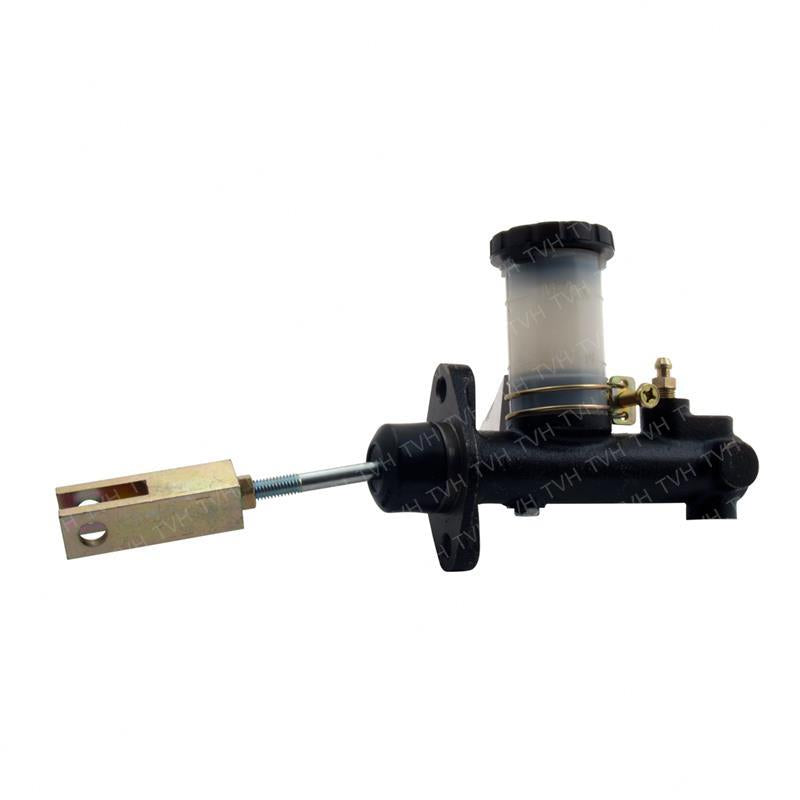

Brake Master Cylinder for Komatsu - OEM 3EA-36-11100
$79.59List $95.95Save 17%
Available to order
Not sure it fits?
Call 817-600-5042 with your truck's model and serial number, or send a request.
Compatibility
Match the model on your truck's data plate, or the OEM number on your old part.
Komatsu
66 modelsOEM 3EA-36-11100
FG10S-15FG15-15FG15H-15FG15S-15FG18H-15FG18S-15FD10-15FD10D-15FD10H-15FD10L-15FD14-15FD14H-15FD15-15FD15D-15FD15H-15FD15L-15FD18-15FG10C-14FG14C-14FG15C-14FG10H-14FG10S-2FG10ST-2FG15H-14FG15S-2FG15ST-2FG18H-14FG18S-2FG18ST-2FD14D-15FD14L-15FD18D-15FD18H-15FD18L-15FG07-3FG09-3FG10-15FG10D-15FG10L-15FG14-15FG14D-15FG14L-15FG15D-15FG15L-15FG18-15FG18D-15FG18L-15FB20SH-4FB25SH-4FB30SH-4FG10C-15FG14C-15FG15C-15FG18C-14FG18C-15FB15SH-6FB18SH-6FG10HT-14FG10ST-15FG15HT-14FG15HT-15FG15ST-15FG15T-15FG18HT-14FG18HT-15FG18ST-15
No matching model listed. Call 817-600-5042 and we'll check fitment for your truck.
Specifications
| Part number | NI3EA-36-11100 |
| OEM cross-reference | 3EA-36-11100 |
| Type of Flange | B |
| Bore Diameter D1 (inch) | 3/4 |
| Bore diameter D1 (mm) | 19.05 |
| Total Length L (mm) | 158 |
| Smallest centre distance C1 (mm) | 60 |
| Neck Diameter D2 (mm) | 35 |
| Number of Exit Ports | 2 |
| Type of Oil | brake fluid |
| Weight (lbs) | 2.59 |
Details
Brake Master Cylinder for Komatsu forklifts. Aftermarket replacement for OEM part number 3EA-36-11100.
Aftermarket replacement part. Brand names and OEM part numbers are used for reference only.
