Texas Equipment Emporium · Aftermarket replacement

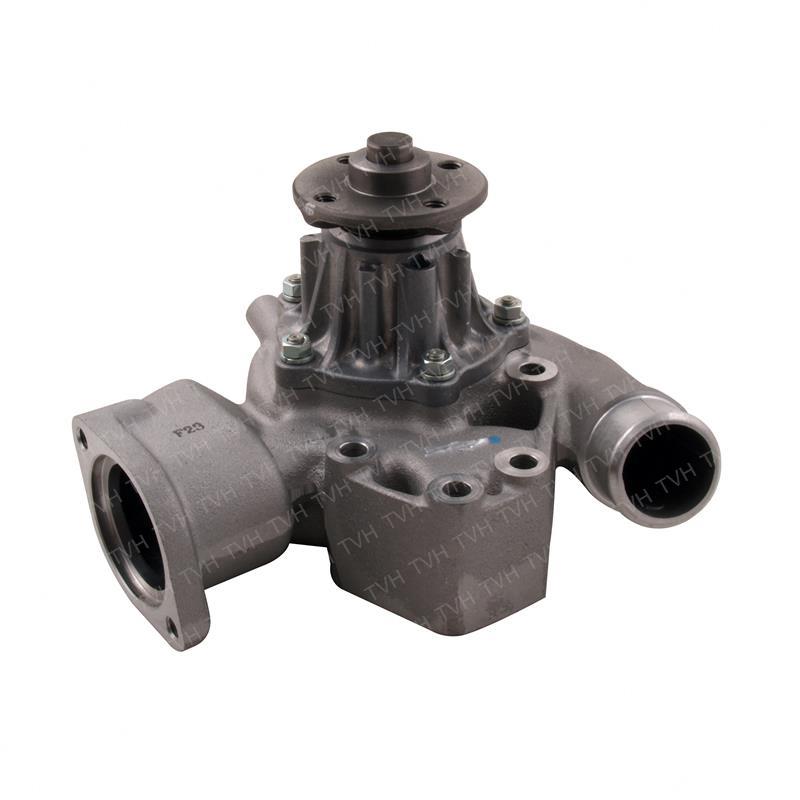

Water Pump for Toyota - OEM 16100-78154-71
$383.03List $438.47Save 12%
Available to order
Not sure it fits?
Call 817-600-5042 with your truck's model and serial number, or send a request.
Compatibility
Match the model on your truck's data plate, or the OEM number on your old part.
Toyota
22 modelsOEM 16100-78154-71
6FGU305FGU305FG105FG145FG155FG185FG205FG235FG256FG106FG146FG155FG285FG305FGF306FG286FG306FGA306FGF305FGF205FGF155FGF18
No matching model listed. Call 817-600-5042 and we'll check fitment for your truck.
Specifications
| Part number | TY16100-78154-71 |
| OEM cross-reference | 16100-78154-71 |
| Sort waterpump | flange |
| Type waterpump | A1 |
| Total height H1 (mm) | 130 |
| Maximum length L1 (mm) | 216 |
| Shaft diameter D1 (mm) | 15.9 |
| Neck diameter D2 (mm) | 28.5 |
| Flange/gear or pully diameter D3 (mm) | 68 |
| Total number of mounting holes in the flange (holes + thread) | 4 |
| Number of threads | 4 |
| Biggest thread TA1 | M8 |
| Metric pitch Pm1 (mm) | 1.25 |
| Smallest centre distance of nearest mounting holes C1 (mm) | 37 |
| Biggest centre distance of nearest mounting holes C2 (mm) | 37 |
| Weight (lbs) | 5.23 |
Details
Water Pump for Toyota forklifts. Aftermarket replacement for OEM part number 16100-78154-71.
Aftermarket replacement part. Brand names and OEM part numbers are used for reference only.
