Texas Equipment Emporium · Aftermarket replacement

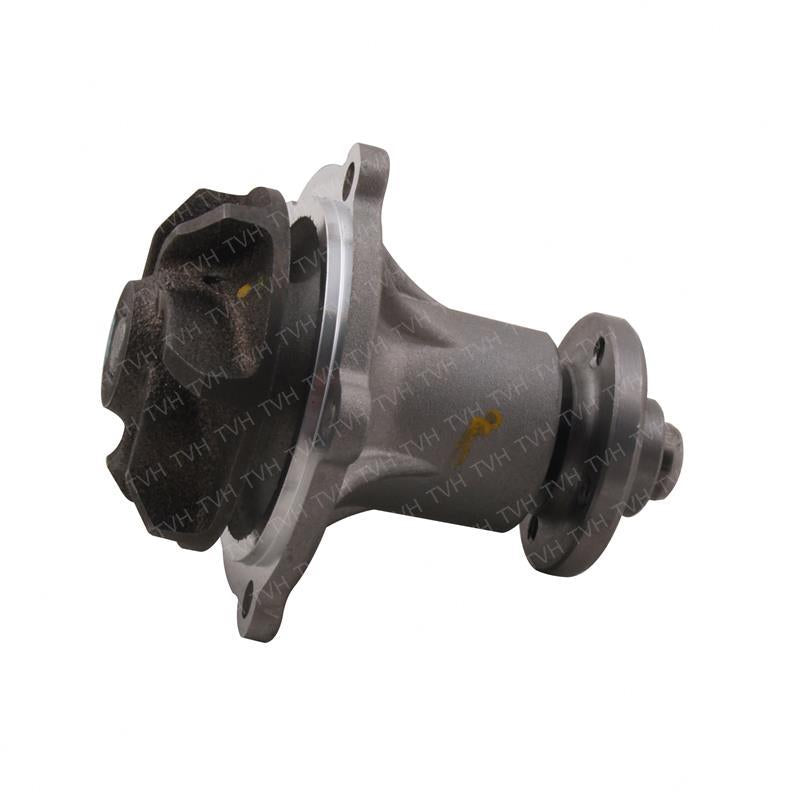

Water Pump for Toyota - OEM 16120-78052-71
$78.02List $149.62Save 47%
Available to order
Not sure it fits?
Call 817-600-5042 with your truck's model and serial number, or send a request.
Compatibility
Match the model on your truck's data plate, or the OEM number on your old part.
Toyota
24 modelsOEM 16120-78052-71
4FG104FG144FG154FG184FGC204FGC25FGC18FGC23FGC253FGC203FGC254FG204FG25FG183FG203FG254FG23FG232SG122SG103FGC103FGC133FGC152FG20
No matching model listed. Call 817-600-5042 and we'll check fitment for your truck.
Specifications
| Part number | TY16120-78052-71 |
| OEM cross-reference | 16120-78052-71 |
| Sort waterpump | flange |
| Type waterpump | A1 |
| Total height H1 (mm) | 103.5 |
| Maximum length L1 (mm) | 93 |
| Shaft diameter D1 (mm) | 11.5 |
| Neck diameter D2 (mm) | 24 |
| Flange/gear or pully diameter D3 (mm) | 52 |
| Total number of mounting holes in the flange (holes + thread) | 4 |
| Number of threads | 4 |
| Biggest thread TA1 | M6 |
| Metric pitch Pm1 (mm) | 1 |
| Smallest centre distance of nearest mounting holes C1 (mm) | 28 |
| Biggest centre distance of nearest mounting holes C2 (mm) | 28 |
| Gasket included | Yes |
| Weight (lbs) | 1.9 |
Details
Water Pump for Toyota forklifts. Aftermarket replacement for OEM part number 16120-78052-71.
Aftermarket replacement part. Brand names and OEM part numbers are used for reference only.
