Texas Equipment Emporium · Aftermarket replacement

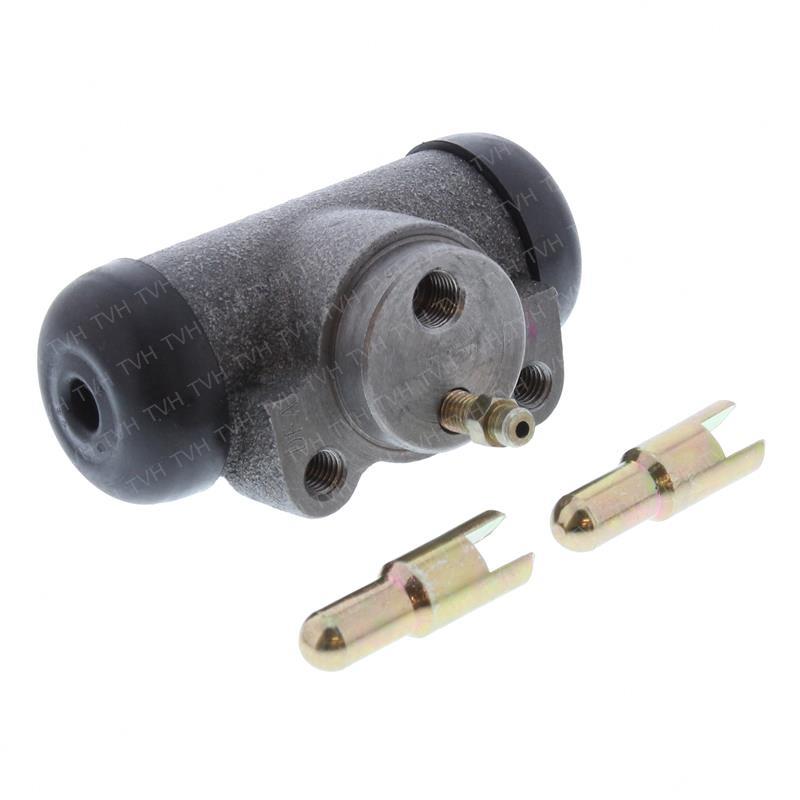

Brake Wheel Cylinder for Toyota - OEM 47410-21580-71
$37.86
Available to order
Not sure it fits?
Call 817-600-5042 with your truck's model and serial number, or send a fitment request.
Compatibility
Match the model on your truck's data plate, or the OEM number on your old part.
Toyota
23 modelsOEM 47410-21580-71
5FDU305FGU308FDJF357FDJ357FGJ357FGJF355FG285FG305FGF302FDC202FDC252FDC303FGC304FGC204FGC255FD285FD305FDF307FDJF358FGJF35FDC18FDC23FDC28
No matching model listed. Call 817-600-5042 and we'll check fitment for your truck.
Specifications
| Part number | TEE-10190 |
| OEM cross-reference | 47410-21580-71 |
| Bore diameter D1 (inch) | 1 1/8 |
| Bore diameter D1-mm (mm) | 28.58 |
| Number Fixation Holes | 2 |
| Length L (mm) | 78 |
| Neck Diameter D2 (mm) | 34 |
| Neck Height L1 (mm) | 8 |
| Distance between center piston and mounting thread L2 (mm) | 28 |
| Thread size | M10 |
| Metric Pitch Pm1 (mm) | 1 |
| Inlet with Taper | Yes |
| Thread size TA2 (smallest) | M8 |
| Metric Pitch Pm2 (mm) | 1.25 |
| Smallest centre distance C1 (mm) | 44 |
| Type of wheel cylinder (RH / LH / neutral) | neutral |
| Pin type | type AK |
| Type of Oil | brake fluid |
| Weight (lbs) | 1.67 |
Details
Brake Wheel Cylinder for Toyota forklifts. Aftermarket replacement for OEM part number 47410-21580-71.
Aftermarket replacement part. Brand names and OEM part numbers are used for reference only.
